Step Shaker in Walnut

  • Description
  • Specifications

If you'd like a sample of this door style please call us at:

(701) 839-3384

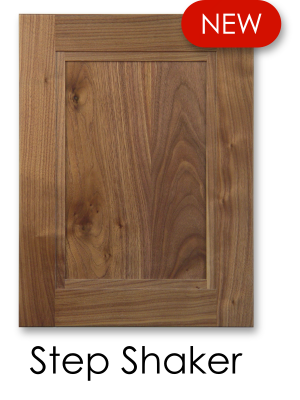

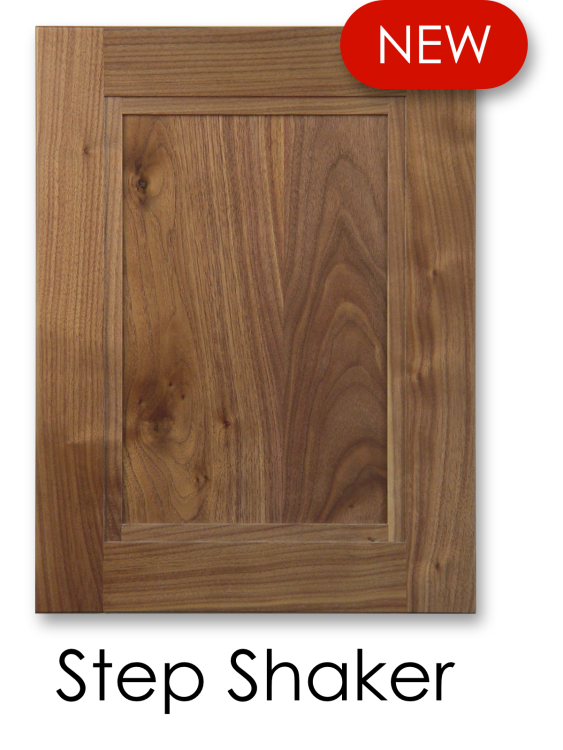

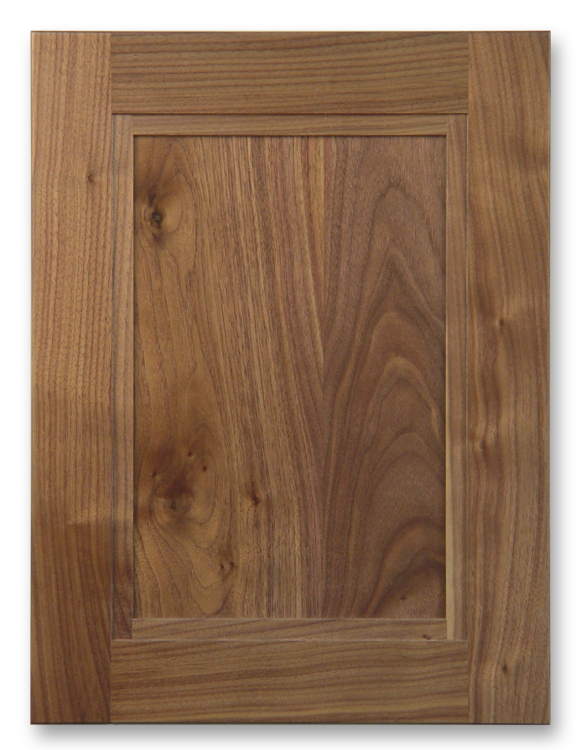

Door shown in black walnut, solid wood panel, and outside 'M' profile.

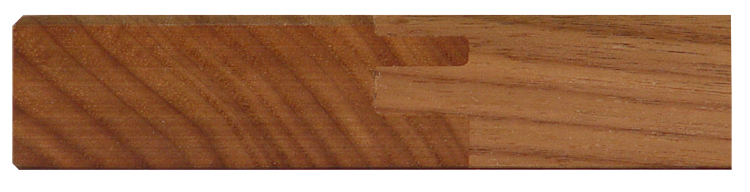

Interior profile steps down 1/8", inward 1/2", and down 1/8" again.

• Step Shaker doors have solid wood frames with 1/4" plywood panels - a solid wood panel upgrade is available.
• The natural range of colors allowed in all wood species including limited amounts of sap and mineral streaks.
• "SELECT" woods are available in most woods for a higher grade of color and grain match (Select White Pine only available with 1/2” solid panel).  “PREMIUM” woods are available for some woods, center panels have to be upgraded to 1/2” solid wood.  See Wood Species for details of Select and Premium grades.
• Step Shaker doors have 13/16" thick frames, 5/4 (1") thick frames available for most woods.
• OPTIONAL square/round pegs can be added to the corners of most door styles, see Door Options.
• Standard outside edge profiles “A” through “M” are available for 400 series doors.

Stile Width: 2-3/8"
Rail Width: 2-3/8"
Minimum Door Size* (WxH): 6-1/2" x 6-1/2"
Minimum Trimmed Door Size* (WxH): 4-3/4" x 4-3/4"
Maximum Door Size (WxH): 26" x 96"
Extra Center Rail Required At: 48"
Drawer Front Compliments This Door: #500 and #Step Shaker Drawer Front
Glass or Open Frame Door Available: Yes
Solid Wood Panel Upgrade Available: Yes
*: If one minimum is used from above specs, add 2" to other.
