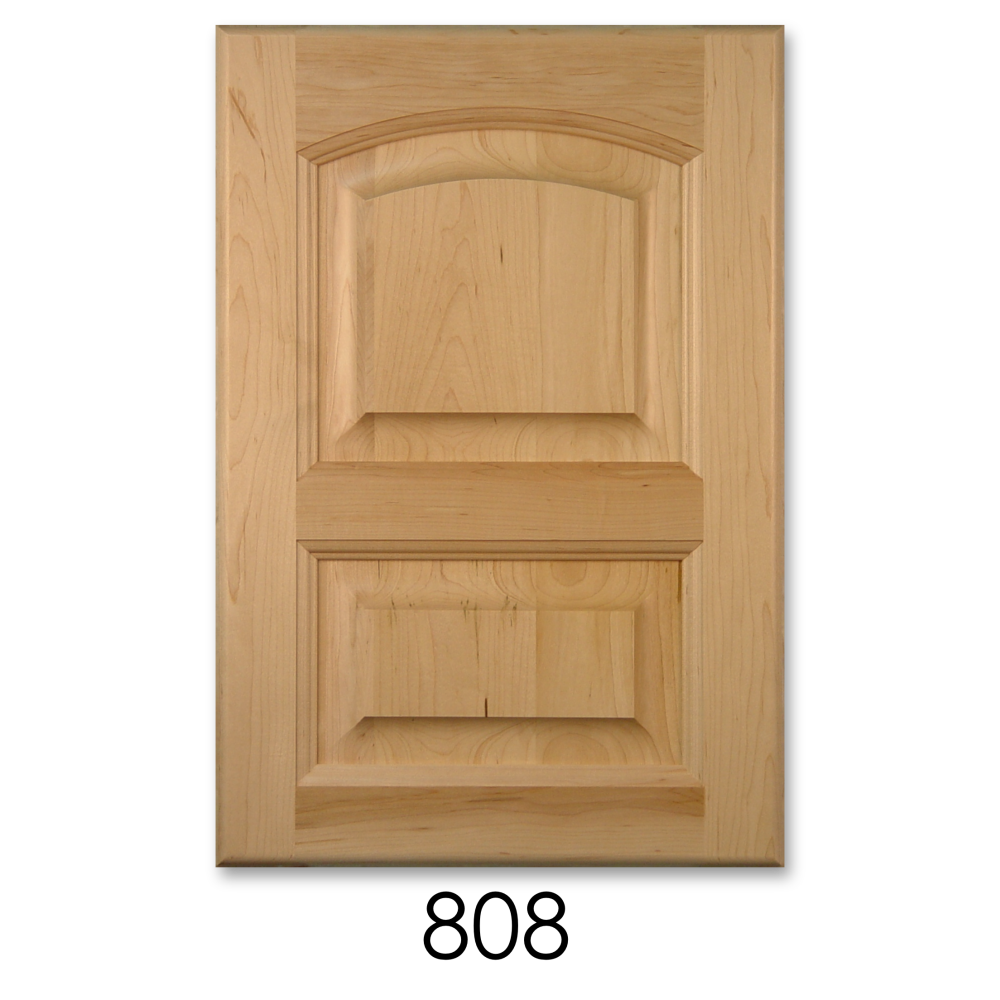

Door shown in Maple with outside edge profile 'A'

• Series 800 doors are constructed of 100% solid wood
• The natural range of colors allowed in all wood species including limited amounts of sap and mineral streaks
• 'Select' woods are available in most woods for a higher grade of color and grain match (Select White Pine only available with a 1/2" solid panel.) 'Premium' woods are available for some woods, center panels have to be upgraded to  solid wood. See Wood Species for details of 'Select' and 'Premium' grades.
• Series 800 doors have 13/16" thick frames, 5/4 (1") thick frames available for most woods
• Optional square/round pegs can be added to the corners of most door styles doors, see Door Options
• Standard outside edge profiles 'A' through 'M' are available for 800 series doors

Panel and inside frame detail


Outside edge profile A shown on door


Line drawing of #808 door

Stile Width: 2/3/8"
Rail Width: 2-3/8"
Arched Rail Width: Appx 3-1/2", height at side varies by width
Crossbar (Center Rail) Width: 2-3/8"
Minimum Door Size* (WxH): 7-5/8" x 15"
Minimum Trimmed Door Size* (WxH): 5-7/8" x 12-3/8"
Maximum Door Size (WxH): 26" x 96"
Extra Center Rail Required At: NA
Panel is Split: 40% bottom panel, 60% top panel
Drawer Front Compliments This Door: #500 and #580
Glass or Open Frame Door Available: Yes
Waterfall Frame Thickness: This frame style cannot be ordered less than 13/16" thick
* If one minimum is used from above specs, add 2" to other.
