111

  • Description
  • More Details
  • Specifications

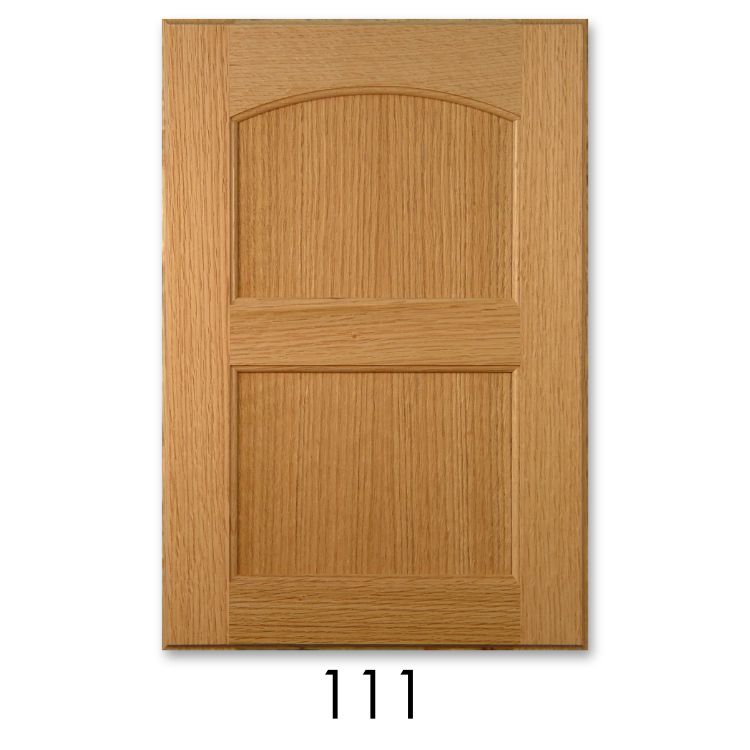

Door shown in Rift-Sawn Red Oak with outside edge profile 'B'

• Series 111 doors have solid wood frames with 1/4" plywood panels
• The natural range of colors allowed in all wood species including limited amounts of sap and mineral streaks
• Select woods are available in most woods for a higher grade of color and grain match (Select White Pine only available with a 1/2" solid panel.) Premium woods are available for some woods, center panels have to be upgraded to solid wood. See
Wood Species for details of Select and Premium grades.
• Series 111 doors have 13/16" thick frames, 5/4 (1") thick frames available for most woods
• OPTIONAL square/round pegs can be added to the corners of most door styles doors, see
Door Options
• Standard outside
edge profiles 'A' through 'M' are available for 111 series doors

Panel and inside frame detail



Outside edge profile B shown on door



Line drawing of #111 door

Stile Width: 2-3/8"
Rail Width: 2-3/8"
Arched Rail Height: Appx 3-1/2", height at side varies by width
Crossbar (Center Rail) Width: 2-3/8"
Minimum Door Size* (WxH): 7-1/2" x 13-3/8"
Minimum Trimmed Door Size* (WxH): 5-3/4" x 10-3/4"
Maximum Door Size (WxH): 26" x 96"
Extra Center Rail Required At: NA
Panel is Split: 50% bottom panel, 50% top panel
Drawer Front Compliments This Door: #500 and #510
Glass or Open Frame Door Available: Yes
Solid Wood Panel Upgrade Available: No
* If one minimum is used from above specs, add 2" to other.
