101

  • Description
  • More Details
  • Specifications

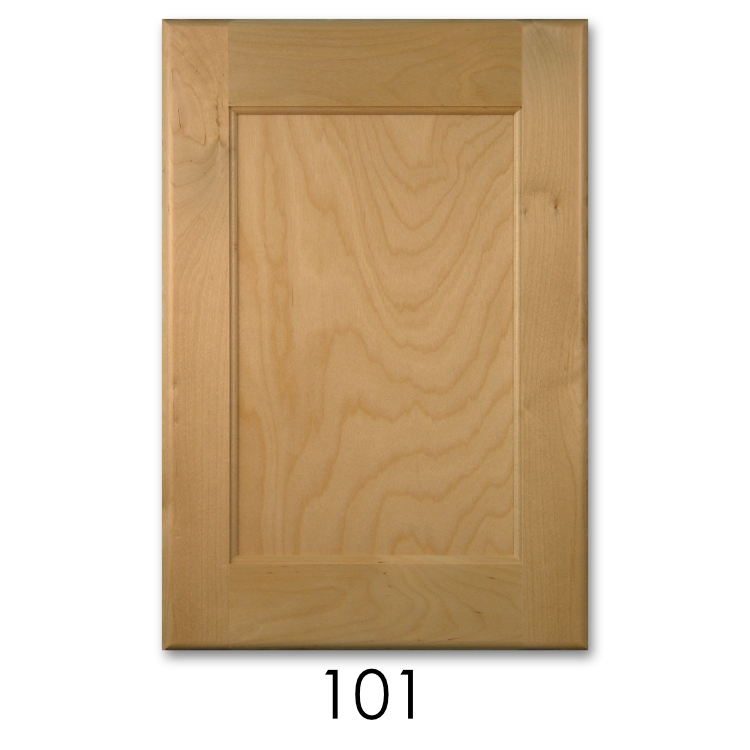

Door shown in Select Birch with outside edge profile 'A'

• Series 101 doors have solid wood frames with 1/4" plywood panels - solid wood panel upgrade is available
• The natural range of colors allowed in all wood species including limited amounts of sap and mineral streaks
• Select woods are available in most woods for a higher grade of color and grain match (Select White Pine only available with a 1/2” solid panel.) Premium woods are available for some woods, center panels have to be upgraded to solid wood. See
Wood Species for details of Select and Premium grades.
• Series 101 doors have 13/16" thick frames, 5/4 (1") thick frames available for most woods
• OPTIONAL square/round pegs can be added to the corners of most door styles doors, see
Door Options
• Standard outside
edge profiles 'A' through 'M' are available for all 100 series doors

Panel and inside frame detail



Outside edge profile A shown on door



Line drawing of #101 door

Stile Width: 2-3/8"
Rail Width: 3"
Minimum Door Size* (WxH): 6-1/2" x 7-3/4"
Minimum Trimmed Door Size* (WxH): 4-3/4" x 4-3/4"
Maximum Door Size (WxH): 26" x 96"
Extra Center Rail Required At: 48"
Drawer Front Compliments This Door: #500 and #510
Glass or Open Frame Door Available: Yes
Solid Wood Panel Upgrade Available: Yes
* If one minimum is used from above specs, add 2" to other.
