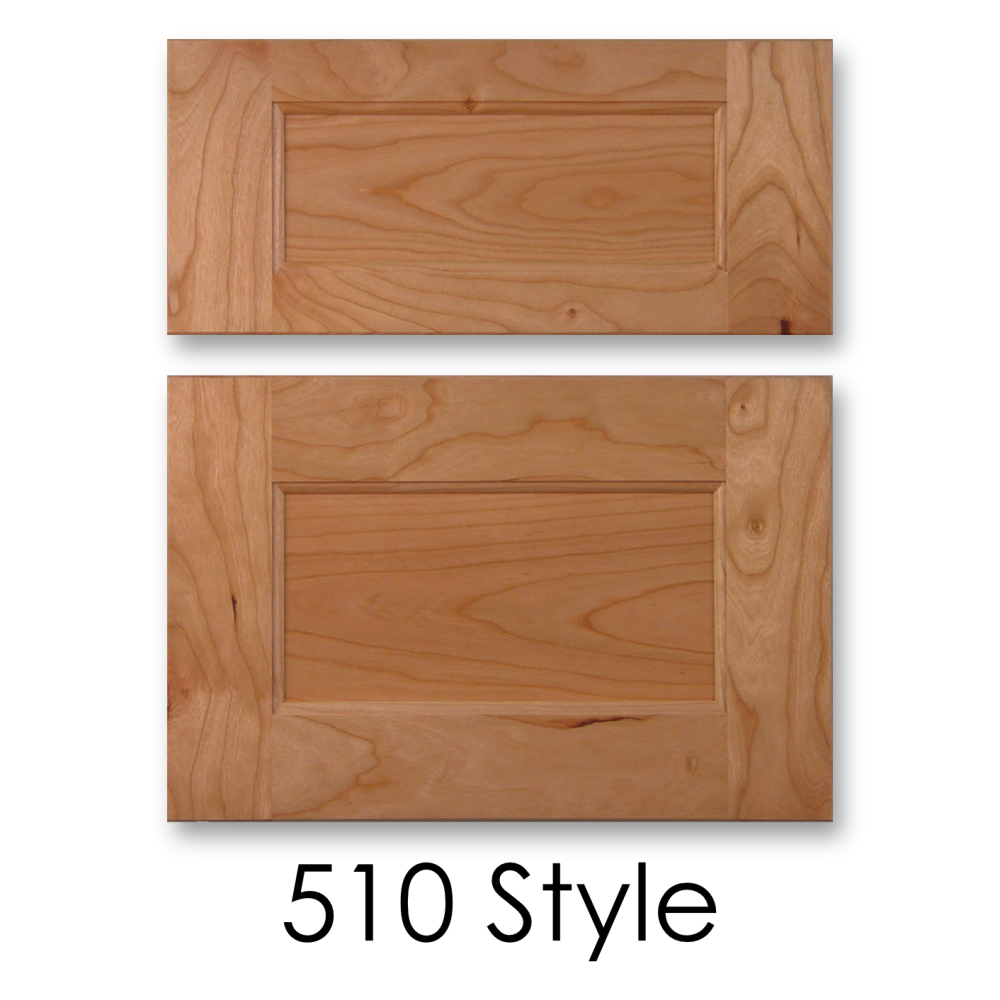

Drawer Front Style #510 (Matches #100 Doors)

  • All solid wood construction, 5 pieces with 1/2" thick panel flat on face
  • Drawer front has horizontal grain on the panel unless ordered otherwise
  • The standard rail width will be used for drawer fronts that are greater or equal to the minimum height. Drawer fronts less than the minumum height will use the alternative rail width. Drawer fronts less the minimum alternative height can be trimmed to the minimum trimmed size.

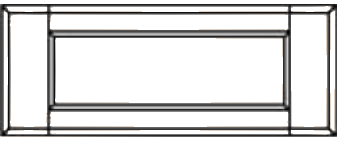

Line Drawing of #510 Drawer Front

Panel & Inside Frame Detail

Stile Width: 2-3/8"
Rail Width: 2-3/8"
Minimum Door Size* (WxH): 7" x 7"
Minimum Alt. Size 7" x 5-1/4"
Minimum Trimmed Door Size* (WxH): 5-3/4" x 4-1/4"
Maximum Drawer Front Size (WxH): 48" x 24"
