250

  • Description
  • More Details
  • Specifications

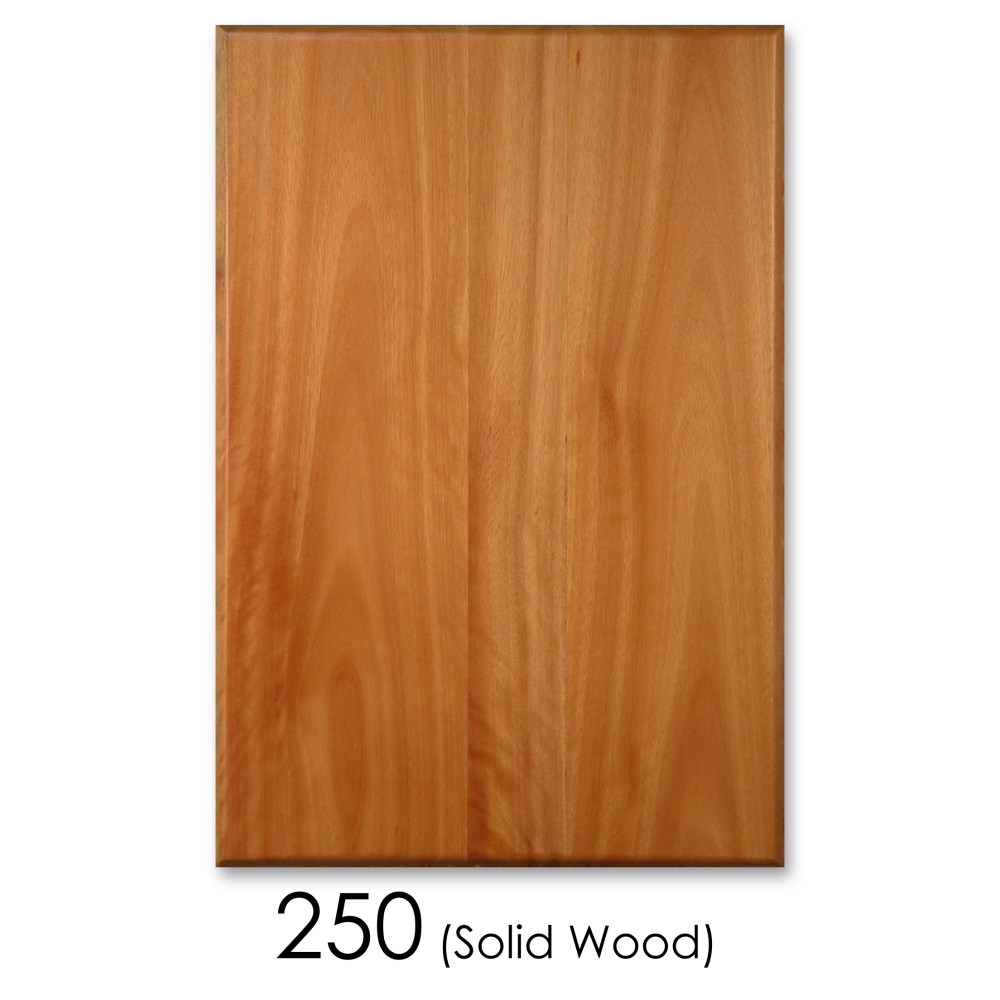

Door shown in Lyptus with outside edge profile "A"

  • Construction is a solid wood slab
  • Drawer front style #500 compliments this door
  • Glass or open frame door is NOT available
  • Two Battens on the back side of the door are 5/8" thick by 1-5/8" wide located 2" from the side edge and 3" from the top and bottom. Battens are installed to help prevent/slow solid wood slab doors from naturally cupping over time.
  • A 3rd Batten is required past 48" in height, a 4th batten past 66" in height

Cross-Section Detail



Outside edge profile C shown on door



Line Drawing of #250

Minimum Door Size* (WxH): 4" x 4"
Minimum Trimmed Door Size* (WxH): 4" x 4"
Maximum Door Size (WxH): 26" x 96"
Extra Center Rail Required At: NA
Drawer Front Compliments This Door: #500
Glass or Open Frame Door Available: No
