916

  • Description
  • More Details
  • Specifications

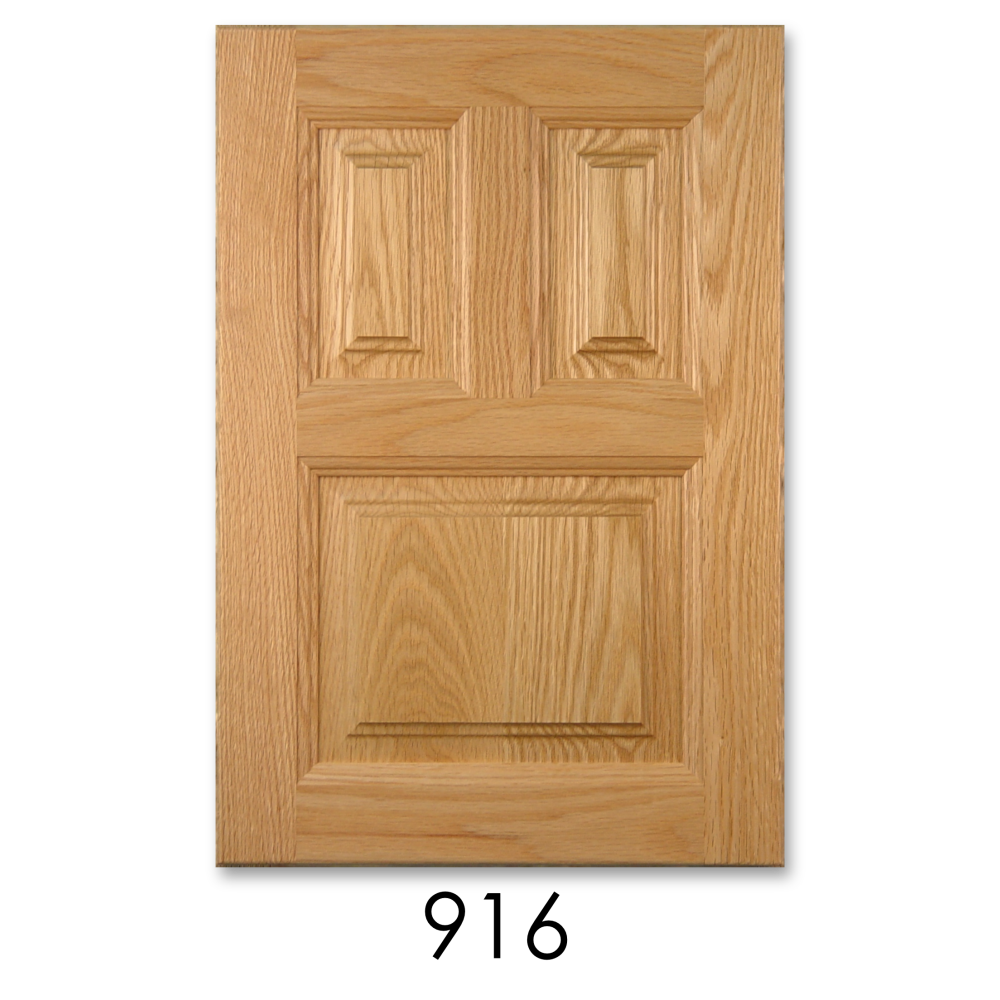

Door shown in Select Red Oak with outside edge profile "K"

• Series 916 doors are constructed of 100% solid wood
• The natural range of colors allowed in all wood species including limited amounts of sap and mineral streaks
• "SELECT" woods are available in most woods for a higher grade of color and grain match (Select White Pine only available with a solid panel.) “PREMIUM” woods are available for some woods, center panels have to be upgraded to solid wood. See Wood Species for details of Select and Premium grades.
• Series 916 doors have 13/16" thick frames, 5/4 (1") thick frames available for most woods
• OPTIONAL square/round pegs can be added to the corners of most door styles doors, see Door Options
• Standard outside edge profiles “A” through “M” are available for 916 series doors

Panel and inside frame detail



Outside edge profile K shown on door



Line drawing of #916 door

Stile Width: 2-3/8"
Rail Width: 2-3/8"
Minimum Door Size* (WxH): 13" x 13"
Minimum Trimmed Door Size* (WxH): 10-3/8" x 10-1/2"
Maximum Door Size (WxH): 26" x 96"
Extra Center Rail Required At: NA
Drawer Front Compliments This Door: #500 and #590
Glass or Open Frame Door Available: Yes
Center Rail Width: 2-3/8"
Center Stile Width: 2-3/8"
Waterfall Frame Thickness: This frame style cannot be ordered less than 13/16" thick
* If one minimum is used from above specs, add 2" to other
** Customer must specify top panel opening (distance between top rail and crossbar), if no opening is specified the default will be 6"
