902

#902, Select Birch, "K"
  • Description
  • More Details
  • Specifications

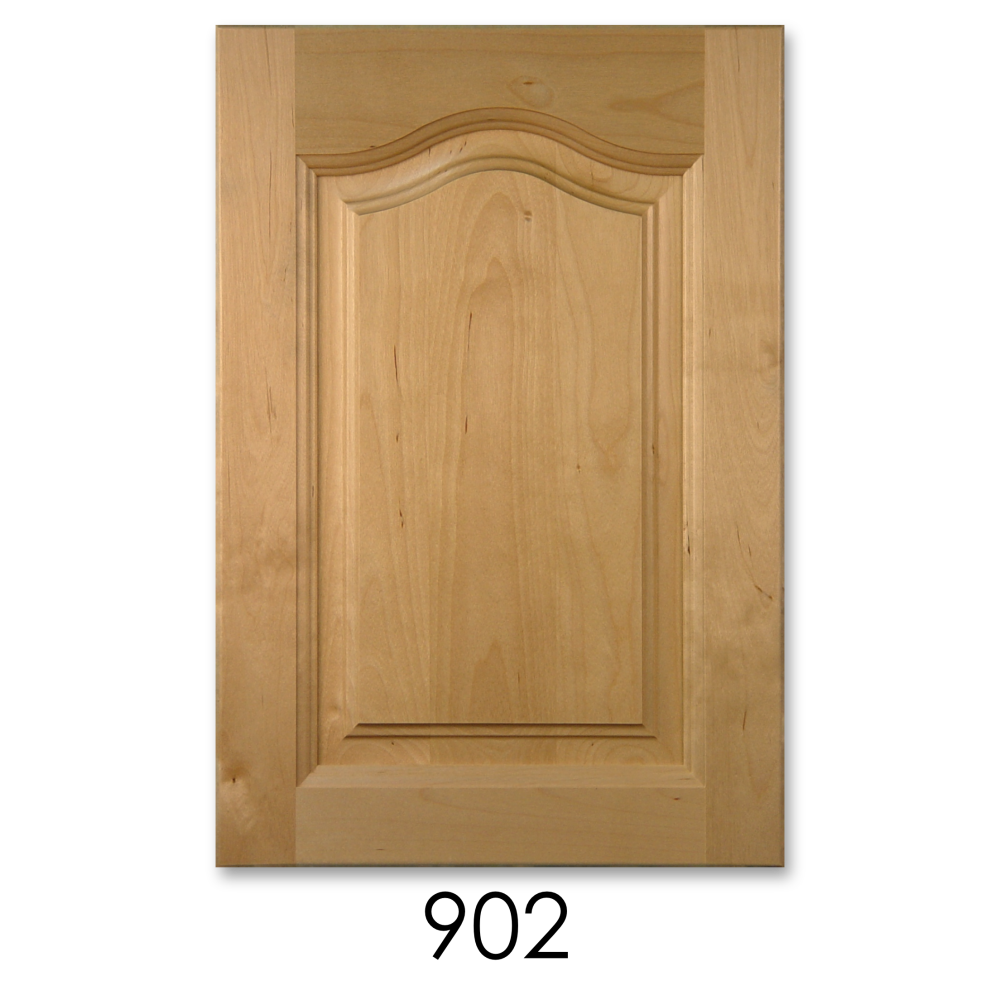

Door shown in Select Birch with outside edge profile "K"

  • Series 902 doors are constructed of 100% solid wood
  • The natural range of colors allowed in all wood species including limited amounts of sap and mineral streaks
  • "SELECT" woods are available in most woods for a higher grade of color and grain match (Select White Pine only available with a solid panel.) “PREMIUM” woods are available for some woods, center panels have to be upgraded to  solid wood. See Wood Species for details of Select and Premium grades.
  • Series 902 doors have 13/16" thick frames, 5/4 (1") thick frames available for most woods
  • OPTIONAL square/round pegs can be added to the corners of most door styles doors, see Door Options
  • Standard outside edge profiles “A” through “M” are available for 902 series doors

Panel and inside frame detail



Outside edge profile K shown on door



Line drawing of #902 door

Stile Width: 2-3/8"
Rail Width: 2-3/8"
Minimum Door Size* (WxH): 7-5/8" x 9"
Minimum Trimmed Door Size* (WxH): 5-7/8" x 7-1/4"
Maximum Door Size (WxH): 26" x 96"
Extra Center Rail Required At: 48"
Drawer Front Compliments This Door: #500 and #590
Glass or Open Frame Door Available: Yes
Arched Rail Height (at side): 3-1/2"
Waterfall Frame Thickness: This frame style cannot be ordered less than 13/16" thick
* If one minimum is used from above specs, add 2" to other
