813

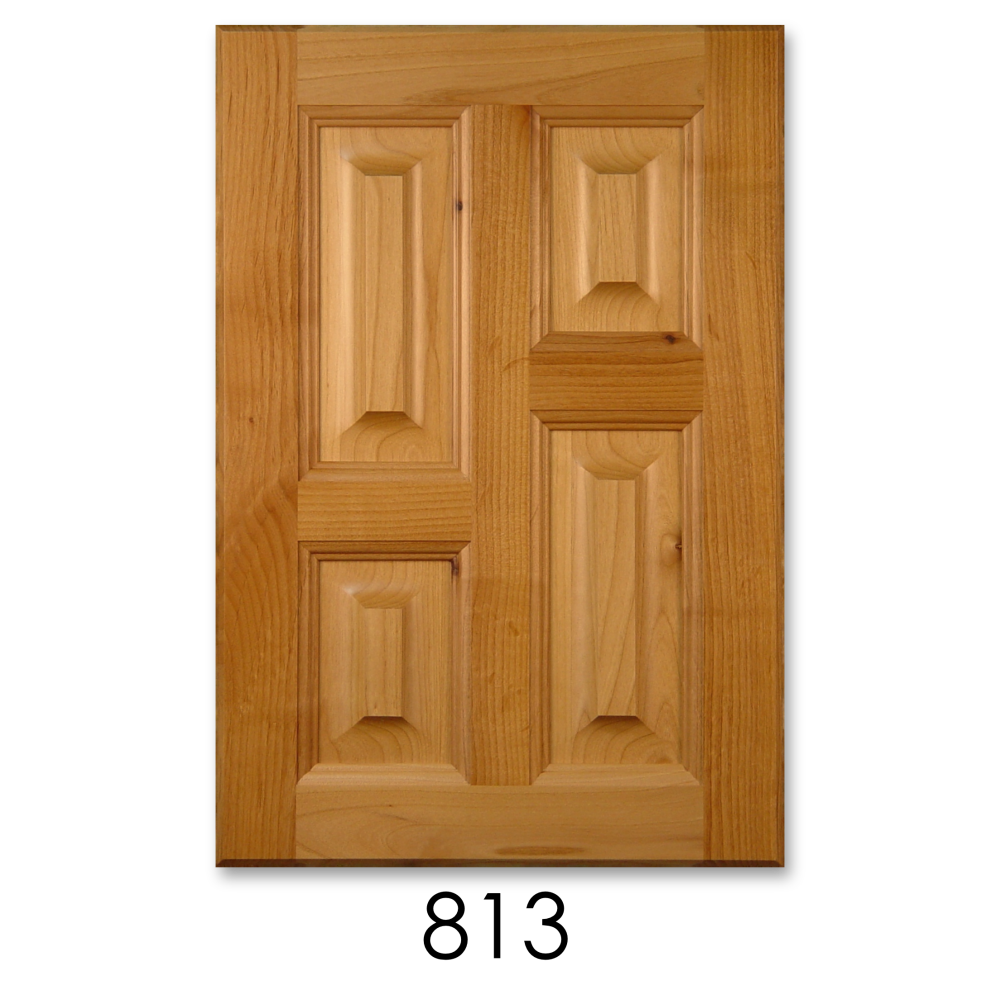

Scherr's Cabinet & Doors 813 Style Doors. Shown here in Red Alder with a 'C' outside profile.
  • Description
  • More Details
  • Specifications

Left hand door is shown in picture.

Door shown in Red Alder with outside edge profile 'C'

• Series 800 doors are constructed of 100% solid wood
• The natural range of colors allowed in all wood species including limited amounts of sap and mineral streaks
• 'Select' woods are available in most woods for a higher grade of color and grain match (Select White Pine only available with a 1/2" solid panel.) 'Premium' woods are available for some woods, center panels have to be upgraded to  solid wood. See Wood Species for details of 'Select' and 'Premium' grades.
• Series 800 doors have 13/16" thick frames, 5/4 (1") thick frames available for most woods
• Optional square/round pegs can be added to the corners of most door styles doors, see Door Options
• Standard outside edge profiles 'A' through 'M' are available for 800 series doors

Panel and inside frame detail



Outside edge profile C shown on door



Line drawing of #813 door

Stile Width: 2/3/8"
Rail Width: 2-3/8"
Crossbar (Center Rail) Width: 2-3/8"
Center Stile Width: 2-3/8"
Minimum Door Size* (WxH): 13" x 15-3/8"
Minimum Trimmed Door Size* (WxH): 10-3/8" x 12-3/4"
Maximum Door Size (WxH): 26" x 96"
Extra Center Rail Required At: NA
Panel is Split: For left hand door (shown) the left panel is split 60% bottom / 40% top, the right panel is split 40% bottom / 60% top, a right hand door is opposite.
Drawer Front Compliments This Door: #500 and #580
Glass or Open Frame Door Available: Yes
Waterfall Frame Thickness: This frame style cannot be ordered less than 13/16" thick
* If one minimum is used from above specs, add 2" to other.
