218

Scherr's Cabinet & Doors 218 Style Doors. Shown here in VG Fir with a 'J' outside profile.
  • Description
  • More Details
  • Specifications

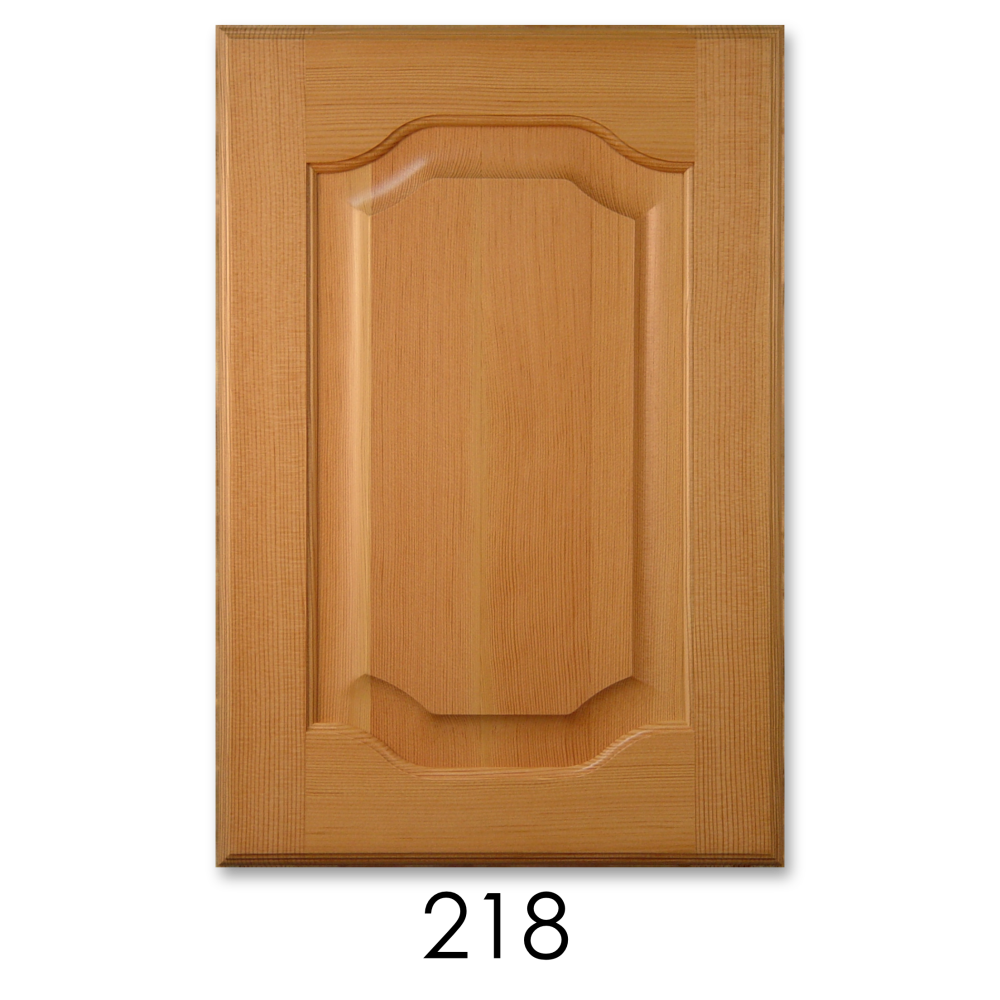

Door shown in VG Fir with outside edge profile 'J'

"VG" stands for Vertical Grain. Fir is typically quarter-sawn standard.

• Series 218 doors are constructed of 100% solid wood
• The natural range of colors allowed in all wood species including limited amounts of sap and mineral streaks
• Select woods are available in most woods for a higher grade of color and grain match (Select White Pine only available with a 1/2" solid panel.) Premium woods are available for some woods, center panels have to be upgraded to solid wood. See Wood Species for details of Select and Premium grades.
• Series 218 doors have 13/16" thick frames, 5/4 (1") thick frames available for most woods
• OPTIONAL square/round pegs can be added to the corners of most door styles doors, see Door Options
• Standard outside edge profiles 'A' through 'M' are available for 218 series doors

Panel and inside frame detail



Outside edge profile J shown on door



Line drawing of #218 door

Stile Width: 2/3/8"
Rail Width: 2-3/8"
Arched Rail Height: 3-1/2" at side
Minimum Door Size* (WxH): 8-3/4" x 10-1/4"
Minimum Trimmed Door Size* (WxH): 7" x 8-1/2"
Maximum Door Size (WxH): 26" x 96"
Extra Center Rail Required At: 48"
Drawer Front Compliments This Door: #500 and #520
Glass or Open Frame Door Available: Yes
* If one minimum is used from above specs, add 2" to other.
