Scherr's Cabinet & Doors 203 Style Doors. Shown here in Select Red Alder with an 'I' outside profile.
  • Description
  • More Details
  • Specifications

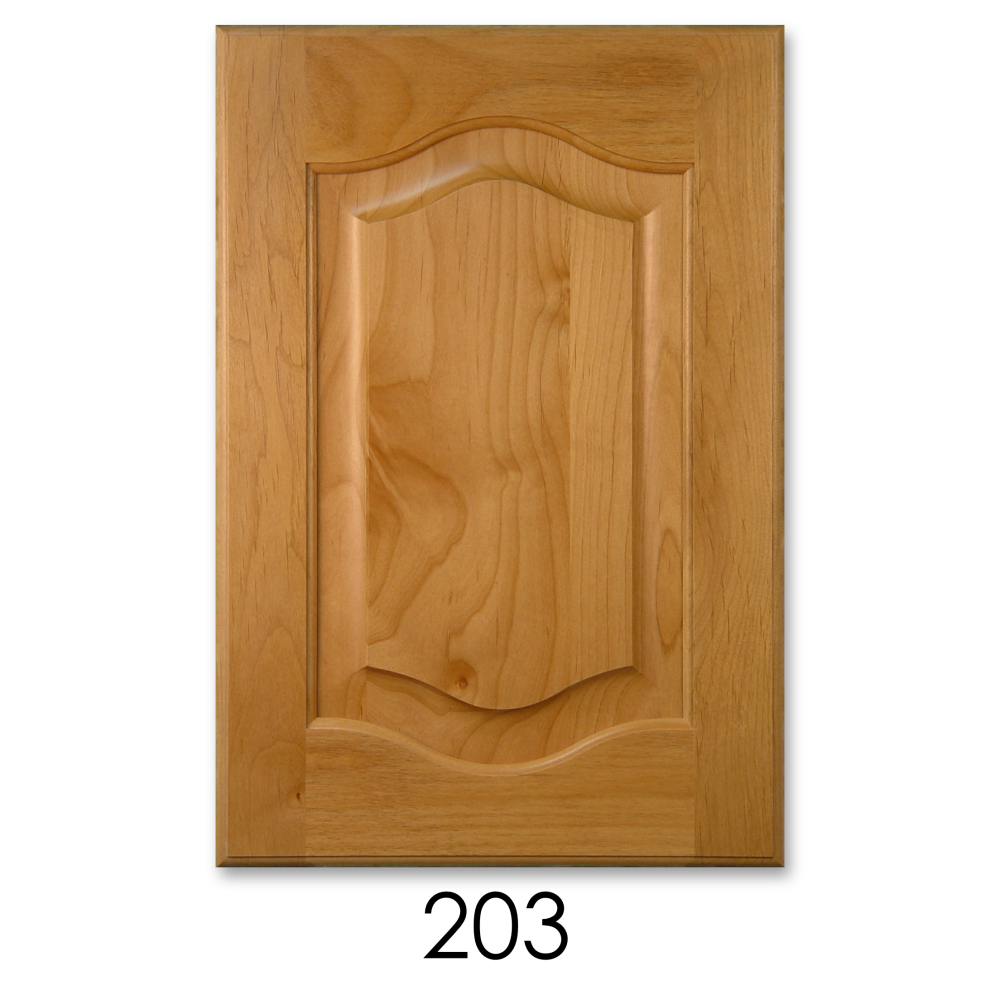

Door shown in Select Red Alder with outside edge profile 'I'

• Series 203 doors are constructed of 100% solid wood
• The natural range of colors allowed in all wood species including limited amounts of sap and mineral streaks
• Select woods are available in most woods for a higher grade of color and grain match (Select White Pine only available with a 1/2" solid panel.) Premium woods are available for some woods, center panels have to be upgraded to solid wood.  See Wood Species for details of Select and Premium grades.
• Series 203 doors have 13/16" thick frames, 5/4 (1") thick frames available for most woods
• OPTIONAL square/round pegs can be added to the corners of most door styles doors, see Door Options
• Standard outside edge profiles 'A' through 'M' are available for 203 series doors

Panel and inside frame detail



Outside edge profile I shown on door



Line drawing of #203 door

Stile Width: 2/3/8"
Rail Width: 2-3/8"
Arched Rail Height: 3-1/2" at side
Minimum Door Size* (WxH): 7-3/4" x 10-1/4"
Minimum Trimmed Door Size* (WxH): 6" x 8-1/2"
Maximum Door Size (WxH): 26" x 96"
Extra Center Rail Required At: 48"
Drawer Front Compliments This Door: #500 and #520
Glass or Open Frame Door Available: Yes
* If one minimum is used from above specs, add 2" to other.
